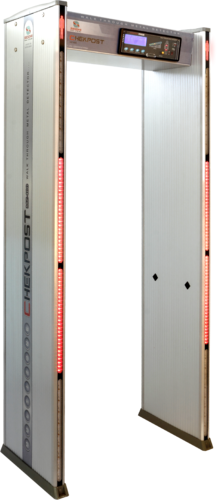

Single Zone Door Frame Metal Detector (SZ-110)

Name: Single Zone Door Frame Metal Detector (SZ-110)
Brand: SIDDHI EQUIPMENTS PVT. LTD.
Price: 119625 INR
Availability: InStock

119625 INR/Piece

Get a Price/Quote

Product Details:

Warranty 12 yr
Temperature Range 0 to 50 degree C Celsius (oC)
Usage Defence services, police establisments ,industrial security, shopping mall,railway station, bank
Power Supply 230 VAC +/-10%
Alarm Multi tone sound,bar graph & LED Lights
Sensitivity Sensitivity settable in 9 step Sensitivity 1 to 9
Application Defence services, police establisments ,industrial security, shopping mall,railway station, bank
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Single Zone Door Frame Metal Detector (SZ-110) Price And Quantity

Minimum Order Quantity 1 Piece
Price 119625 INR/Piece

Single Zone Door Frame Metal Detector (SZ-110) Product Specifications

Product Type SZ-110
Weight 70 Kilograms (kg)
Frequency 50 Hertz (HZ)
Color colour,shape of actual product may vary
Dimension (L*W*H) 2200 x 870 x 540 Millimeter (mm)
Input Power 230 VAC Watt (W)
Waterproof Yes
Sensitivity Sensitivity settable in 9 step Sensitivity 1 to 9
Alarm Multi tone sound,bar graph & LED Lights
Application Defence services, police establisments ,industrial security, shopping mall,railway station, bank
Power Supply 230 VAC +/-10%
Usage Defence services, police establisments ,industrial security, shopping mall,railway station, bank
Temperature Range 0 to 50 degree C Celsius (oC)
Warranty 12 yr

Single Zone Door Frame Metal Detector (SZ-110) Trade Information

FOB Port mumbai
Supply Ability 20 Piece Per Day
Delivery Time 1-2 Week
Sample Available No
Sample Policy Free samples are available
Main Domestic Market All India
Certifications ISO 9001:2015 Certified Company

Product Description

Product Details:

Audio indication	Multi-tone, indicating quantity of metal detected
Metal Type	Gold ,Ferrous Metals,All Types,Non-Ferrous Metals
Alarm Mode	Sound,Led Lights
Max Scanning Width	750 MM APPROX
Visual indication	Bar graph & LED
Power supply	230 VAC +/- 10%, 50 Hz
Passage Clearance	1950 X 760 X 540 mm
Overall dimension	2200 X 870 X 540 mm
Operating temperature	0 to 50 degree C
Humidity	0 to 90% RH non condensing
Floor Space required	870 X 540 mm
Features	Plugged in Charging, Rechargable Batteries, Sensitivity Adjustment, Built in Speaker

Technical specification

Power supply - 230 VAC +/- 10%, 50 Hz
Visual indication - Bar graph & LED
Audio indication - Multi-tone, indicating quantity of metal detected

Advanced Detection Technology

Equipped with a nine-step adjustable sensitivity feature, the SZ-110 allows users to tailor detection parameters to the specific security requirements of their facility. Whether in a busy public venue or a secure institution, its precise tuning helps minimize false alarms while maintaining strict security standards.

Durable & All-Weather Construction

The waterproof design ensures optimal performance in both indoor and outdoor settings. Its sturdy build and reliable componentry mean the SZ-110 consistently operates under varying weather conditions within a temperature range of 0 to 50 degrees Celsius, making it suitable for diverse installation sites across India.

User-Friendly Operation & Immediate Alerts

Featuring multi-tone sound alarms, LED lights, and a bar graph display, the SZ-110 offers clear and immediate notifications when metal is detected. Its straightforward interface ensures that security personnel can operate the device efficiently with minimal training, enhancing site safety and response times.

FAQ's of Single Zone Door Frame Metal Detector (SZ-110):

Q: How does the SZ-110 metal detector indicate the presence of metal objects?

A: The SZ-110 provides immediate alerts through multi-tone sound alarms, LED lights, and a bar graph display, ensuring security staff are promptly notified when metallic items are detected.

Q: What environments and applications is the SZ-110 suitable for?

A: This detector is ideal for places such as defence services, police establishments, shopping malls, industrial security checkpoints, railway stations, and banks across India, supporting both indoor and outdoor security measures.

Q: Can the sensitivity of the SZ-110 be adjusted for different security requirements?

A: Yes, the SZ-110 features a nine-step adjustable sensitivity setting, allowing customization from level 1 to 9 to suit varying detection needs and minimize false alerts.

Q: Is the SZ-110 door frame metal detector waterproof?

A: Yes, the SZ-110 is designed with waterproof capabilities, making it reliable for use in a range of environmental conditions including outdoor applications.

Q: What power supply does the SZ-110 require for operation?

A: The detector operates on a 230 VAC 10% power supply, making it compatible with standard electrical outlets commonly found in commercial and institutional settings.

Q: What warranty is provided with the SZ-110 metal detector?

A: The SZ-110 comes with a standard 12-month warranty, ensuring coverage for manufacturing defects and offering buyers peace of mind.

Q: What are the main benefits of installing the SZ-110 in high-security areas?

A: Integrating the SZ-110 enhances security by reliably detecting metallic threats, providing fast alerts, and enabling swift security responses, all within a durable, easy-to-use platform.
